Reducing the overheads for coupling machine learning models to Fortran

ML&DL Seminars, LSCE - IPSL, Paris

Jack Atkinson

ICCS/Cambridge

Simon Clifford

ICCS/Cambridge

Athena Elafrou

NVIDIA

Elliott Kasoar

STFC/ICCS

Tom Meltzer

ICCS/Cambridge

Dominic Orchard

ICCS/Cambridge/Kent

2023-11-28

Precursors

Licensing

Except where otherwise noted, these presentation materials are licensed under the Creative Commons Attribution-NonCommercial 4.0 International (CC BY-NC 4.0) License.

Vectors and icons by SVG Repo used under CC0(1.0)

Slides

To access links or follow on your own device these slides can be found at
https://jackatkinson.net/slides

Introduction

The ICCS

The Institute of Computing for Climate Science

• Domain-specific group based at the University of Cambridge
• Embedded support to several international climate science projects

ICCS Brings together a number of individuals with varying skills to improve climate modelling.
My background in this is domain science and numerical modelling on HPC.
As well as specific projects we seek to highlight common challenges.

Climate Modelling

Climate models are large, complex, many-part systems.

Machine Learning

We typically think of Deep Learning as an end-to-end process;
a black box with an input and an output.

Who’s that Pokémon?

\[\begin{bmatrix}\vdots\\a_{23}\\a_{24}\\a_{25}\\a_{26}\\a_{27}\\\vdots\\\end{bmatrix}=\begin{bmatrix}\vdots\\0\\0\\1\\0\\0\\\vdots\\\end{bmatrix}\] It’s Pikachu!

Neural Net by 3Blue1Brown under fair dealing.
Pikachu © The Pokemon Company, used under fair dealing.

Machine Learning in Science

Neural Net by 3Blue1Brown under fair dealing.
Pikachu © The Pokemon Company, used under fair dealing.

2 approaches: * emulation, or * data-driven.

Additional challenges: * Physical compatibility * Physics-based models have conservation laws
Required for accuracy and stability * Language interoperation

Language interoperation

Many large scientific models are written in Fortran (or C, or C++).
Much machine learning is conducted in Python.

Mathematical Bridge by cmglee used under CC BY-SA 3.0
PyTorch, the PyTorch logo and any related marks are trademarks of The Linux Foundation.”
TensorFlow, the TensorFlow logo and any related marks are trademarks of Google Inc.

Emulation and data-driven is a focus of several of our projects. CALIPSO, M2LInES, DataWave, etc.
Models typically in Fortran
ML typically in Python
Challenge of interoperation

Solutions

Considerations

There are 2 types of efficiency:

• Computational


• Developer


An ideal solution should:

• not generate excess additional work,
  • not require advanced computing skills,
  • have a minimal learning curve,
• not add excess dependencies,
• be easy to maintain, and
• maximise performance.

1. No re-writing net after you have already done and trained
2. For scientists doing science, not compsci
3. Run on HPC environments so minimal additional
4. Easily keep up to date
5. Simple to learn and deploy
6. Needs to be as efficient as possible

Possible solutions

• Implement a NN in Fortran
• Forpy/CFFI
• SmartSim
• Fortran-Keras Bridge

Possible solutions

• Implement a NN in Fortran
• Forpy/CFFI
• SmartSim
• Fortran-Keras Bridge

• e.g. inference-engine, neural-fortran, own custom solution etc.

• Removes the two-language problem

• How do you ensure you port the model correctly?
• ML libraries are highly optimised, probably more so than your code.

Fortran: - Existing: - more dependencies - new skillset required - longevity/featureset? - Self written: - more to maintain - needs checks and tests - need to be careful you exactly match the implementation

Possible solutions

• Implement a NN in Fortran
• Forpy/CFFI
• SmartSim
• Fortran-Keras Bridge

• Brings python types into Fortran

• Easy to add forpy.mod file and compile

• Verbose, with a learning curve
• Need to manage and link python environment
• Increases dependencies

Possible solutions

• Implement a NN in Fortran
• Forpy/CFFI
• SmartSim
• Fortran-Keras Bridge

• Pass data between workers through a network glue layer
• May be necessary for certain architectures

• Highly versatile - deals with data, not endpoints.

• Learning curve
• Involves data copying

Possible solutions

• Implement a NN in Fortran
• Forpy/CFFI
• SmartSim
• Fortran-Keras Bridge

• Pure Fortran

• TensorFlow (Keras) only
• Inactive and incomplete

Other suggestions include fifo pipes, YAC (Arnold et al. 2023)

Possible solutions

Python
env

Python
runtime

xkcd #1987 by Randall Munroe, used under CC BY-NC 2.5

Introducing FTorch

Approach

• PyTorch (and TensorFlow) have C++ backends and provide APIs to access.

• Binding Fortran to C is straightforward¹ from 2003 using iso_c_binding.

We will:

• Archive PyTorch model as Torchscript
  • Statically typed subset of Python
  • Produces Intermediate Representation/graph of NN
  • Read and run via any Torch API
• Provide Fortran API to abstract complex details from users
  • Wrapping the libtorch C++ API

TorchScript is a statically typed subset of Python

1. A dangerous word, rather, ‘well supported’?

Performant - Computational

No-copy access in memory (CPU).

Indexing issues and associated reshape can be avoided with Torch accessor.

Copying is one of the most expensive operations you can do. Avoid this!

Ease of use - Installation

CMake

• Install libtorch (or PyTorch)
• Clone FTorch
• Build using CMake
  (instructions provided)
• Install
• Link

• Clone and build alongside code
• Guidance on linking provided
  Similar to any other lib e.g. NetCDF

Tested on:

• Linux
• macOS
• Windows

CMake is a trademark of Kitware.

Ease of use

Examples

• Guide users through entire process:
  • Saving a python model
  • to running in Fortran.
• Includes:
  • Basic user-defined net
  • Preloaded (ResNet-18) case
  • Gravity wave drag scientific example

Tools

• pt2ts.py script facilitates saving models to TorchScript.

Support

• Use frameworks’ implementations directly
  • feature support
  • future support
  • direct translation of python models ¹

Licensing and FOSS

The libraries are licensed under MIT and available as FOSS.

• Highly permissive for use by all
• OS development on GitHub using issues and PRs

• NB Currently inference only - build and train in python

1. Caveats exist if using exotic non-Torch features.

Code

Saving model to TorchScript

import torch
import torchvision

# Load pre-trained model and put in eval mode
model = torchvision.models.resnet18(weights="IMAGENET1K_V1")
model.eval()

# Create dummmy input
dummy_input = torch.ones(1, 3, 224, 224)

# Trace model and save
traced_model = torch.jit.trace(model, dummy_input)
frozen_model = torch.jit.freeze(traced_model)
frozen_model.save("saved_model.pt")

Loading a Torch model

! Use the FTorch Library
use :: ftorch

implicit none

! Define a Torch module
type(torch_module) :: model

! Load in from Torchscript
model = torch_module_load('/path/to/saved/model.pt')

Through developing a nice library it behaves as you would expect it to!

Creating Tensors

use, intrinsic :: iso_fortran_env, only : sp => real32

! Use the FTorch Library
use :: ftorch

implicit none

! Fortran variables
real(sp), dimension(1,3,244,244), target :: in_data
real(sp), dimension(1, 1000), target :: out_data
integer, parameter :: n_inputs = 1
integer :: in_layout(4) = [1,2,3,4]
integer :: out_layout(2) = [1,2]

! Torch Tensors
type(torch_tensor), dimension(1) :: in_tensor
type(torch_tensor) :: out_tensor

! Populate Fortran data
call random_number(in_data)

! Cast Fortran data to Tensors
! Create input/output tensors from the above arrays
in_tensor(1) = torch_tensor_from_array(in_data, in_layout, torch_kCPU)
out_tensor = torch_tensor_from_array(out_data, out_layout, torch_kCPU)

Through developing a nice library it behaves as you would expect it to!

Running model

! Infer
call torch_module_forward(model, in_tensor, n_inputs, out_tensor)

Through developing a nice library it behaves as you would expect it to!

Cleaning up

! Cleanup
call torch_module_delete(model)
call torch_tensor_delete(in_tensor(1))
call torch_tensor_delete(out_tensor)

! Use Fortran array `out_data` elsewhere in code

Due to shared memory the output is already there!

Complete Code

use, intrinsic :: iso_fortran_env, only : sp => real32

! Use the FTorch Library
use :: ftorch

implicit none

! Define a Torch module
type(torch_module) :: model

! Fortran variables
real(sp), dimension(1,3,244,244), target :: in_data
real(sp), dimension(1, 1000), target :: out_tensor
integer, parameter :: n_inputs = 1
integer :: in_layout(4) = [1,2,3,4]
integer :: out_layout(2) = [1,2]

! Load in from Torchscript
model = torch_module_load('/path/to/saved/model.pt')

! Populate Fortran data
call random_number(in_data)

! Cast Fortran data to Tensors
! Create input/output tensors from the above arrays
in_tensor(1) = torch_tensor_from_array(in_data, in_layout, torch_kCPU)
out_tensor = torch_tensor_from_array(out_data, out_layout, torch_kCPU)

! Infer
call torch_module_forward(model, in_tensor, n_inputs, out_tensor)

! Cleanup
call torch_module_delete(model)
call torch_tensor_delete(in_tensor(1))
call torch_tensor_delete(out_tensor)

! Use Fortran array `out_data` elsewhere in code

GPU Acceleration

Save to TorchScript GPU from python:

# Set device as cuda
device = torch.device('cuda')

# Move model and dummy input to device before saving to TorchScript
model = model.to(device)
model.eval()
dummy_input = dummy_input.to(device)

# Trace model and save
traced_model = torch.jit.trace(model, dummy_input)
frozen_model = torch.jit.freeze(traced_model)
frozen_model.save("saved_gpu_model.pt")

Cast Tensors to GPU in Fortran:

! Load in from Torchscript
model = torch_module_load('/path/to/saved/gpu/model.pt')

! Cast Fortran data to Tensors
in_tensor(1) = torch_tensor_from_array(in_data, in_layout, torch_kCUDA)
out_tensor = torch_tensor_from_array(out_data, out_layout, torch_kCPU)

Through developing a nice library it behaves as you would expect it to!
Familiar to pytorch users.
Pointer slinging is largely hidden from users.
Data transposition is taken care of by us (but options available for users to handle).

Case Study

Gravity Wave parameterisation in MiMA

• Atmospheric model (Jucker and Gerber 2017)
• Replace physics-based gravity wave parameterisation

• Neural Net
  • Emulating Alexander and Dunkerton (1999) gravity wave parameterisation.
  • Fully-connected multi-layer net with identical Pytorch and TensorFlow versions
  • Trained offline in PyTorch
  • Initially interfaced (slowly) using forpy (Espinosa et al. 2022)

Too slow by a factor of 10+ - led to question of why are we doing this!

Results

• Zonal-mean zonal winds (m/s)

• Averaged over ±5 deg lat.

• Pressure (height) vs. time Hovmöller diagram

• FTorch exactly reproduces results of direct python call

• NN is stable and reproduces QBO
  Tends to slightly over/under-predict

Coding example

Replace the forpy connected net with our direct coupled approach.

Test both PyTorch and TensorFlow.

Given a Fortran program with model inputs in arrays,

the original coupling using forpy requires

45

lines of boilerplate code,

whilst our library takes

27.

A fork of MiMA with these implementations of the interfaces is at:
https://github.com/DataWaveProject/MiMA-machine-learning

Our code is also a lot more ‘PyTorchThonic’!

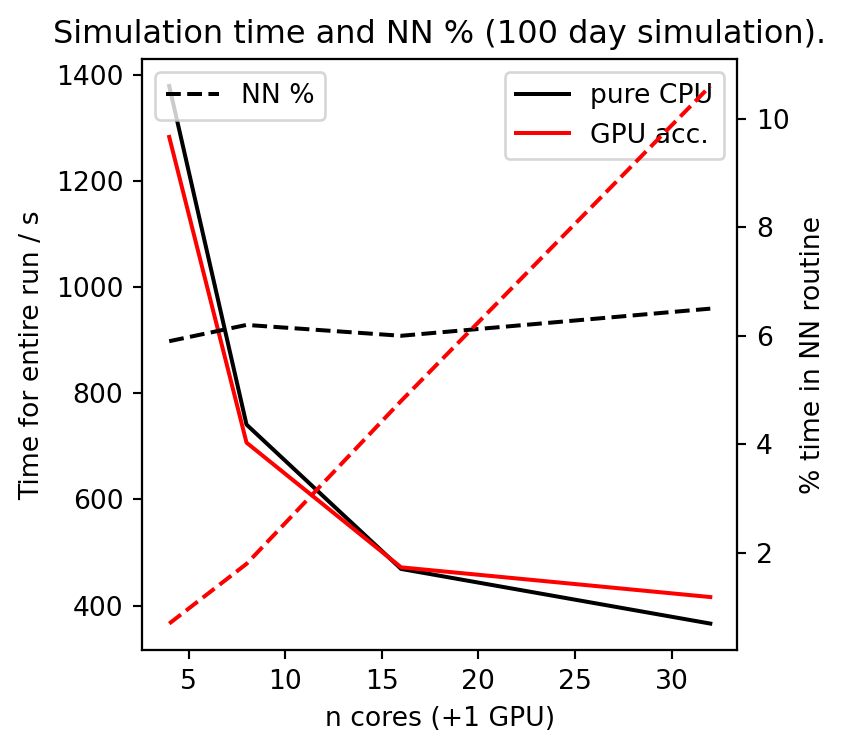

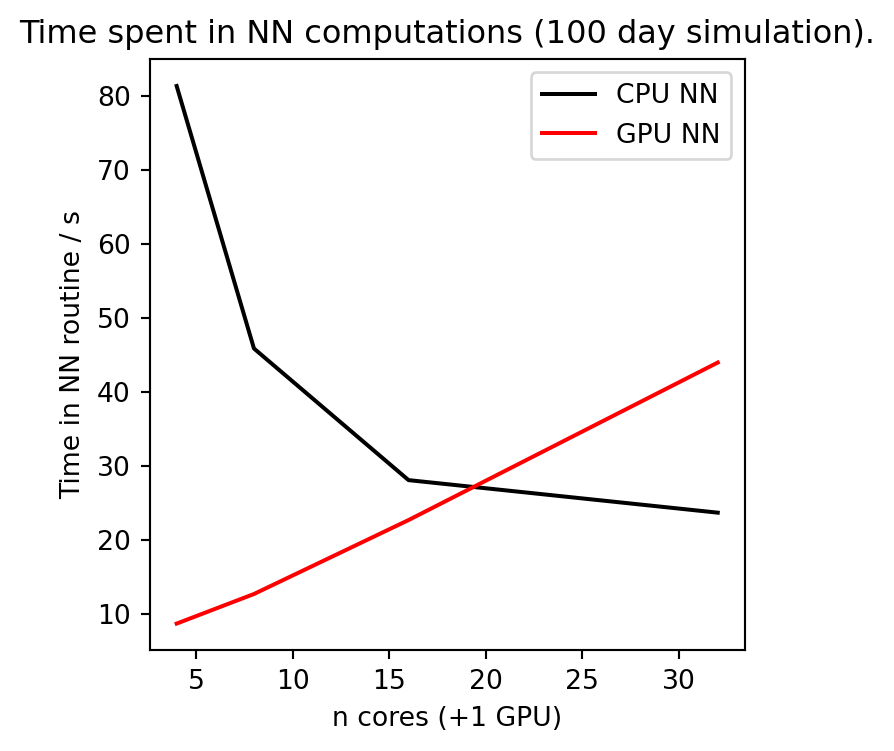

Strong Scaling

Wilkes3 (CSD3)

• 3rd Generation AMD EPYC 64-Core CPUs
• NVIDIA A100-SXM-80GB GPUs

Observations:

• Data transfer to GPU becomes important
  • Suggest using MPI_gather to reduce overheads
• CPU Net scales well

We see clearly the danger of data transfer.
MPI gather, but requires some knowledge of this.

Benchmarking

Following the comparisons and MiMA experiments we performed detailed benchmarking to examine the library performance.

OMP Helps speed up CPU Calculations.
Using Torch optimisations.
Limited effect on GPU acc. 5x speedup by adding threads on CPU.
30x speedup for 1 Thread w GPU, 10x for 8.

Conclusions

Take away messages

• Machine learning has many potential applications in scientific computing
• Leveraging it effectively requires care
• FTorch allows easy and efficient deployment of ML within Fortran models
  • Minimal change required to instrument existing codes
  • Designed to be simple and familiar
• For new ML projects we advise using PyTorch

We recommend PT
TF has a weakness that prior knowledge of model structure is required.
FTorch requires minimal changes to existing code

Future work

• Continuous development to improve UX
  • Abstraction of C bindings, Torch efficiency etc.
• Implement functionalities beyond inference?
  • Online training is likely to become important
• Implementation into CESM and other models
  • Including general guidelines

Get involved

• Inform potential users
  • Further testing and feedback wanted!
• FTorch team always keen to assist
  • Book an ICCS Code Clinic

Further discussion

EGU

• 14th – 19th April 2024, Vienna, Austria
• Interfacing machine learning and numerical modelling - challenges, successes, and lessons learned.
• Convener: Jack Atkinson
  Co-conveners: Julien Le Sommer, Alessandro Rigazzi, Will Chapman, Emily Shuckburgh
• Abstract deadline 10th January

PASC (TBC)

• 3rd – 5th June 2024, Zurich, Switzerland
• Minisymposium: Interfacing Machine Learning with Physics-Based Models
• Speaker interest required asap

Thank You

The libraries can be found at:

     Torch: https://github.com/Cambridge-ICCS/FTorch

     TensorFlow: https://github.com/Cambridge-ICCS/fortran-tf-lib

Slides available at: https://jackatkinson.net/slides/IPSL_FTorch/IPSL_FTorch.html

Get in touch:

 Jack Atkinson

 jackatkinson.net

 jwa34[AT]cam.ac.uk

 jatkinson1000

 @jatkinson1000@fosstodon.org

The ICCS is funded by

References

Alexander, MJ, and TJ Dunkerton. 1999. “A Spectral Parameterization of Mean-Flow Forcing Due to Breaking Gravity Waves.” Journal of the Atmospheric Sciences 56 (24): 4167–82.

Arnold, C., S. Sharma, T. Weigel, and D. Greenberg. 2023. “Efficient and Stable Coupling of the SuperdropNet Deep Learning-Based Cloud Microphysics (V0.1.0) to the ICON Climate and Weather Model (V2.6.5).” EGUsphere 2023: 1–17. https://doi.org/10.5194/egusphere-2023-2047.

Espinosa, Zachary I, Aditi Sheshadri, Gerald R Cain, Edwin P Gerber, and Kevin J DallaSanta. 2022. “Machine Learning Gravity Wave Parameterization Generalizes to Capture the QBO and Response to Increased CO2.” Geophysical Research Letters 49 (8): e2022GL098174.

Jucker, Martin, and EP Gerber. 2017. “Untangling the Annual Cycle of the Tropical Tropopause Layer with an Idealized Moist Model.” Journal of Climate 30 (18): 7339–58.

Bonus Content

Fortran-Tensorflow-lib

TensorFlow

• C++ and C APIs
• Archive model as Keras SavedModel
• process_model provided to extract required opaque parameters and use API

C++ expects to easily use protobufs - not the case in Fortran. Process model generates a Fortran module with parameters extracted.

Forpy vs FTorch comparison

e.g. Loading a Torch model

ie = forpy_initialize()

type(module_py) :: run_emulator
type(list) :: paths
type(object) :: model
type(tuple) :: args
type(str) :: py_model_dir

ie = str_create(py_model_dir, trim('/path/to/saved/model'))
ie = get_sys_path(paths)
ie = paths%append(py_model_dir)

! import python modules to `run_emulator`
ie = import_py(run_emulator, trim(model_name))
if (ie .ne. 0) then
    call err_print
    call error_mesg(__FILE__, __LINE__, "forpy model not loaded")
end if

! use python module `run_emulator` to load a trained model
ie = call_py(model, run_emulator, "name_of_init_function")
if (ie .ne. 0) then
    call err_print
    call error_mesg(__FILE__, __LINE__, "call to `initialize` failed")
end if

Have to mangle around doing python things in Fortran

e.g. Loading a Torch model

type(torch_module) :: model

model = torch_module_load('/path/to/saved/model.pt')

Through developing a nice library it behaves as you would expect it to!
